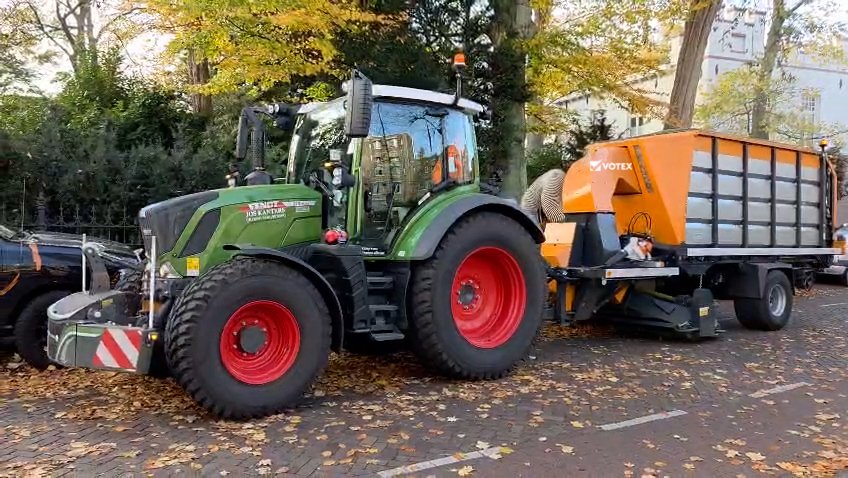

VT120

Maximum capacity, minimum effort

The Votex VT120 is the largest model in the Votex vacuum trailer range and is designed for professionals who maintain large areas and demand efficiency, reliability and high performance. With a 12 m³ hopper, a powerful centrifugal fan, and a robust construction, the VT120 delivers outstanding results when mowing, sweeping, and collecting grass, leaves, and organic debris. It is the ideal solution for municipalities, contractors, sports facilities and estates where high capacity and durability are essential.

The fan is driven by the PTO (540 rpm) and provides exceptional suction power thanks to its V-belt drive. The impeller is made from wear-resistant materials, and both the fan housing and discharge chute are equipped with replaceable wear liners, ensuring long service life and minimal maintenance costs.

Emptying is performed by a hydraulically driven conveyor floor, allowing the collected material to be discharged quickly and with full control. The 6.5-ton single axle with leaf springs and air brakes guarantees stability and safety, while the turf tyres (500/50R17) minimise ground pressure — even when fully loaded.

Two versions – built for every task

• VT120S – standard with hydraulic brush drive, ideal for sweeping and collecting operations.
• VT120M – standard with mechanical vacuum head drive, optionally equipped with a flail shaft or verti-cut shaft for maximum versatility.

Engineered for capacity, power and efficiency

The VT120 is designed for applications where high capacity, strength and efficiency are essential. With its impressive 12 m³ hopper and robust hydraulic conveyor floor, the machine processes large volumes of grass, leaves and debris with ease — making it ideal for contractors, municipalities and organisations that maintain extensive areas daily.

The combination of a wear-resistant centrifugal fan, a mechanically or hydraulically driven vacuum head, and a stable 6.5-ton single axle with air brakes ensures reliable performance even under demanding conditions. Thanks to the turf tyres 500/50R17, ground pressure remains low and the machine stays stable on a wide range of surfaces.

With CE certification, EU road homologation, standard 12V lighting, a Walterscheid wide-angle PTO shaft and an integrated toolbox, the VT120 is fully equipped for safe road transport and intensive daily operation.

For added versatility, a selection of optional tools is available — including a joystick-controlled suction arm, flail shaft or verti-cut shaft (M-series only) — making the VT120 suitable for year-round professional use.
